In view of the shortage of construction workers, tight construction schedules and safety hazards which may arise form limited space available during the construction of large scale electrical and mechanical (E&M) plants and installations of relevant equipment, many E&M contractors adopts an innovative construction method of “Design for Manufacture and Assembly” (DfMA) for carrying out “Multi-trade Integrated Mechanical, Electrical and Plumbing” (MiMEP) works in their projects.
With the introduction of DfMA, the overall works efficiency, quality, site management and safety can be effectively enhanced.
To facilitate adoption of DfMA by E&M contractors, Fortune Links provides a full suite of services, namely ALinks-Prefab, which includes basic information collection, BIM modelling, modulization, module production, testing and on-site installation.
BIM Modelling
Quality Assurance
Module Production
Modulization
On-site Installation
Basic Information Collection
Basic Information Collection
Fortune Links can collect basic site information via
-
Tender drawings for new built projects
-

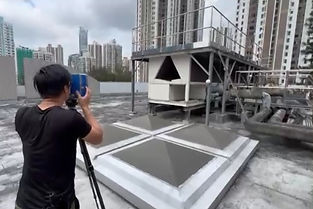

On-site precision measurement for existing buildings with device such as Leica DistoD510, Faro 3D laser scanner
For new built
Tender drawings
For existing building

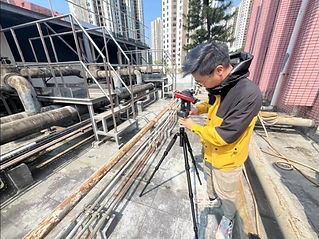

On-site precision measurement with device e.g. Leica DistoD510, Faro 3D laser scanner
Modulization
After completion of BIM models, the digitized design can be divided into modules according to factors such as site conditions, transportation constraints, delivery schedule, workflow and so on. Next, the modular design can be transformed into detailed shop drawings ready for production.

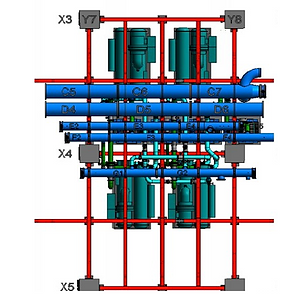

BIM Model

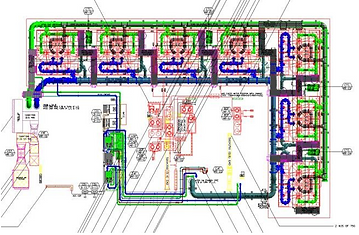

Modular Shop Drawings
Module Production

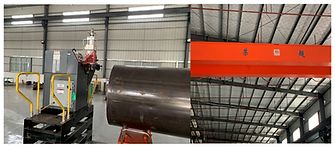

In our module production facility, modern automated machinery is equipped to carry out tube cutting, welding and roll grooving of components with high efficiency, precision, reliability and safety.
Automatic tube cutting machine

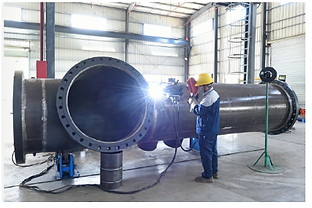

Semi-automatic welding machine

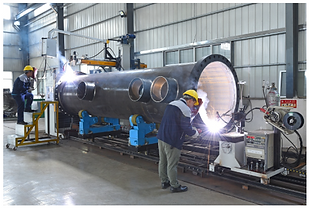

Automatic welding machine
Roll groove machine
For production of "trickier" custom-made modules, we have highly skilled technicians to take up the challenge with impeccable craftsmanship.
Custom-made modules

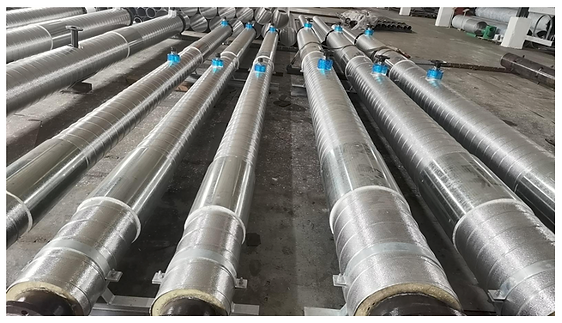

Completed modules
On-site Installation
Finally, Fortune Links can provide logistic support to ensure smooth delivery of modules to sites and seamless integration with ongoing construction works. Upon request, our technician can work side-by-side with E&M contractors to assist with module installation.
Module delivery planning according to site installation workflow

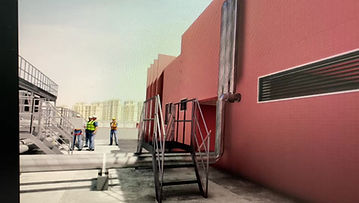

BIM modeler on-site to assist module installation (e.g. Tai Koo 2B)
